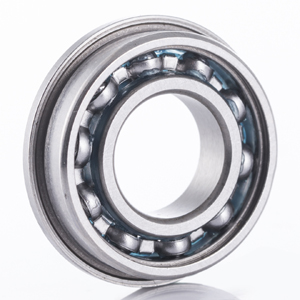

MF72
  • MF72
Bearing Type Ball
Load Direction Radial
Construction Single Row
Ball Bearing Type Flanged
Seal Type Open
Model MF72
Bore Dia. (d)
2mm
Bore Dia. Tolerance
-0.008mm to 0
Outer Dia. (D)
7mm
Outer Dia. Tolerance
-0.008mm to 0
Width (B)
2.5mm
Width Tolerance -0.12mm to 0
Flange OD 8.2mm
Flange Width 0.6mm
Ring Material
Gcr15 | 52100 Chrome steel
Ball Material Gcr15 | 52100 Chrome steel
Cage Material Gcr15 | 52100 Chrome steel
Shield Material Gcr15 | 52100 Chrome steel
Dynamic Load Rating (Cr) (N)
169
Static Load Rating (Cor) (N) 50
Max Speed (Grease) (X1000 RPM)
85
Max Speed (Oil) (X1000 RPM)  100
Temperature Range
-30 to 110 ℃
Precision Grade P0 | ABEC-1
Radial Clearance Grade C0
Radial Clearance
0.002mm to 0.013mm
Weight
0.34g
