| Bearing Type | Ball |
| Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |

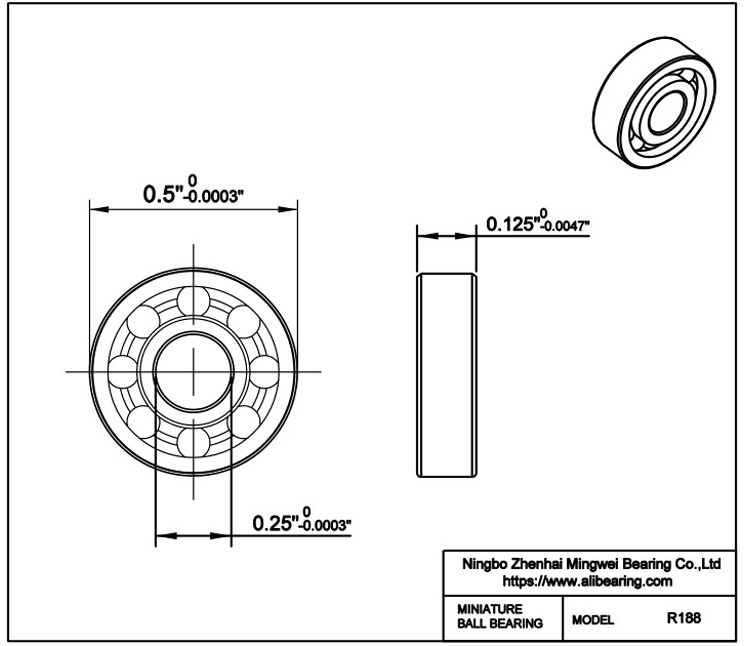

| Model | R188 |
|
Bore Dia (d) |
0.2500" | 6.350 mm |
| Bore Dia Tolerance | -0.0003" to 0" | -0.008mm to 0 |
|
Outer Dia (D) |
0.5000" | 12.700 mm |
| Outer Dia Tolerance | -0.0003" to 0" | -0.008mm to 0 |
| Width (B) | 0.1250" | 3.175mm |
| Width Tolerance | -0.005" to 0" | -0.12mm to 0 |
| Ring Material | Gcr15 | 52100 Chrome Steel |
| Ball Material | Gcr15 | 52100 Chrome Steel |
| Cage Material | Gcr15 | 52100 Chrome Steel |
| Shield Material | Gcr15 | 52100 Chrome Steel |
|
Dynamic Load Rating (Cr) (N) |
1080 |
| Static Load Rating (Cor) (N) | 440 |
|
Max Speed (Grease) (X1000 RPM) |
40 |
|
Max Speed (Oil) (X1000 RPM) |
50 |
|
Temperature Range |
-30℃ to 110 ℃ |
| Weight | 1.6g |
|
|
