| Bearing Type | Ball |
| Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Sealed |
| Model | 623 2rs |
|

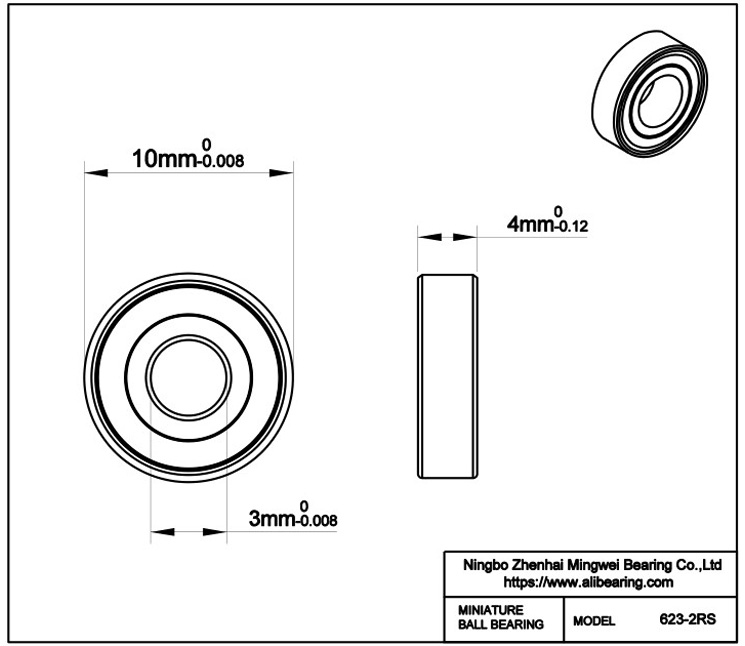

Bore Dia (d) |
3mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| Outer Dia (D) | 10mm |
|
Outer Dia Tolerance |
-0.008mm to 0 |
|
Width (B) |
4mm |
| Width Tolerance | -0.12mm to 0 |
| Ring Material | Gcr15 | 52100 Chrome Steel |
| Ball Material | Gcr15 | 52100 Chrome Steel |
| Cage Material | Gcr15 | 52100 Chrome Steel |
| Shield Material | Gcr15 | 52100 Chrome Steel |
| Dynamic Load Rating (Cr) (N) | 630 |
| Static Load Rating (Cor) (N) | 218 |
|
Max Speed (Grease) (X1000 RPM) |
50 |
| Max Speed (Oil) (X1000 RPM) | 60 |
|
Temperature Range |
-30℃ to 110 ℃ |
| Precision Grade | P0 | ABEC-1 |
|
Radial Clearance Grade |
C0 |
|
Radial Clearance |
0.002mm to 0.013mm |
|
Weight |
1.65g |
|
|
