F5-12M
  • F5-12M
Bearing Type Ball
Load Direction Axle
Seal Type Open
Grooved With flat raceway

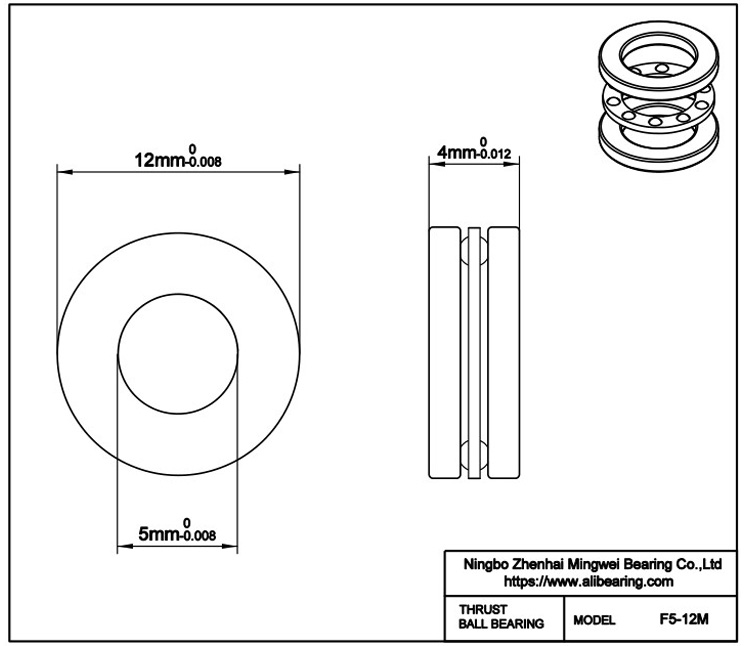

Model F5-12M
Bore Dia (d)
 5mm
Bore Dia Tolerance
 -0.008mm to 0
Outer Dia (D)
 12mm
Outer Dia Tolerance
 -0.008mm to 0
Height 4mm
Height Tolerance
 -0.12mm to 0
Washer Material Gcr15 | 52100 Chrome steel
Ball Material Gcr15 | 52100 Chrome steel
Cage Material Bronze
Dynamic Load Rating (Cr) (N)
 988
Static Load Rating (Cor) (N) 880
Max Speed (Grease) (X1000 RPM) 5
Max Speed (Oil) (X1000 RPM)  8
Temperature Range
 -30℃ to 110 ℃
Weight
 2.1g
