| Bearing Type | Ball |
| Load Direction | Axle |
| Seal Type | Open |
| Grooved | With flat raceway |

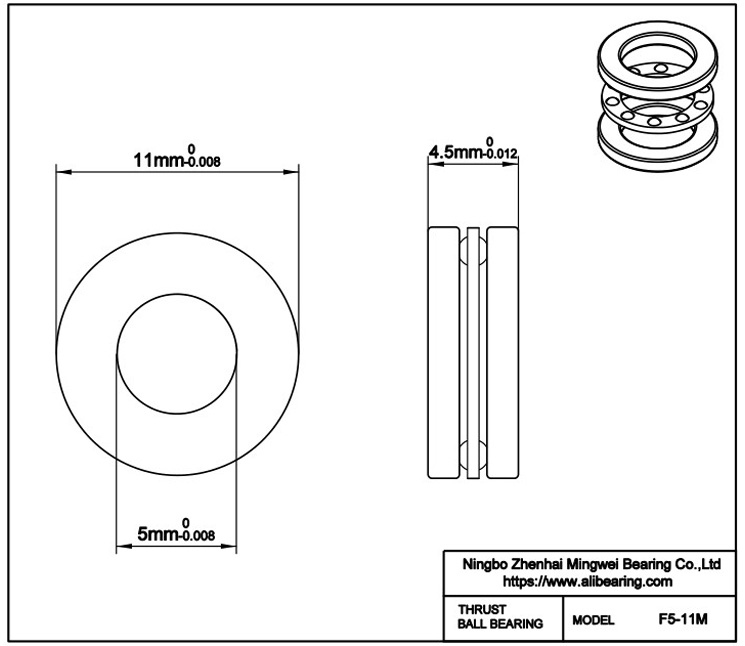

| Model | F5-11M |
|
Bore Dia (d) |
5mm |
|
Bore Dia Tolerance |
-0.008mm to 0 |
|
Outer Dia (D) |
11mm |
|
Outer Dia Tolerance |
-0.008mm to 0 |
| Height | 4.5mm |
|
Height Tolerance |
-0.12mm to 0 |
| Washer Material | Gcr15 | 52100 Chrome steel |
| Ball Material | Gcr15 | 52100 Chrome steel |
| Cage Material | Bronze |
|
Dynamic Load Rating (Cr) (N) |
988 |
| Static Load Rating (Cor) (N) | 880 |
| Max Speed (Grease) (X1000 RPM) | 5 |
| Max Speed (Oil) (X1000 RPM) | 8 |
|
Temperature Range |
-30℃ to 110 ℃ |
|
Weight |
2.1g |
|
|
