Current location：Home > Thrust Ball Bearing > F7-15M

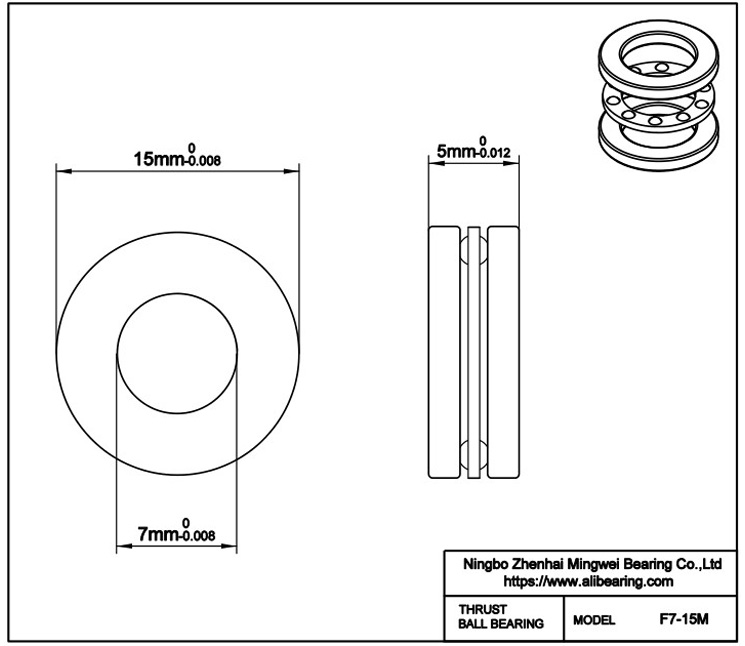

F7-15M
  • F7-15M
Bearing Type Ball
Load Direction Axle
Seal Type Open
Grooved With flat raceway
Model F7-15M
Bore Dia (d)
 7mm
Bore Dia Tolerance
 -0.008mm to 0
Outer Dia (D)
 15mm
Outer Dia Tolerance
 -0.008mm to 0
Height 5mm
Height Tolerance
 -0.12mm to 0
Washer Material Gcr15 | 52100 Chrome steel
Ball Material Gcr15 | 52100 Chrome steel
Cage Material Bronze
Dynamic Load Rating (Cr) (N)
 2200
Static Load Rating (Cor) (N) 2000
Max Speed (Grease) (X1000 RPM) 3.6
Max Speed (Oil) (X1000 RPM)  7.1
Temperature Range
 -30℃ to 110 ℃
Weight
 6.5g


Request a Quote
  • *
  • *
  • *
