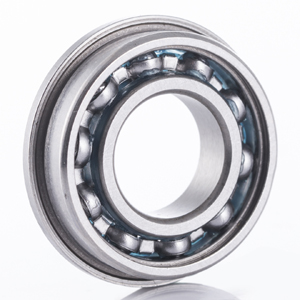

Bearing Type | Ball |
Load Direction | Radial |
Construction | Single Row |
Ball Bearing Type | Flanged |
Seal Type | Open |
Model | MF63 |

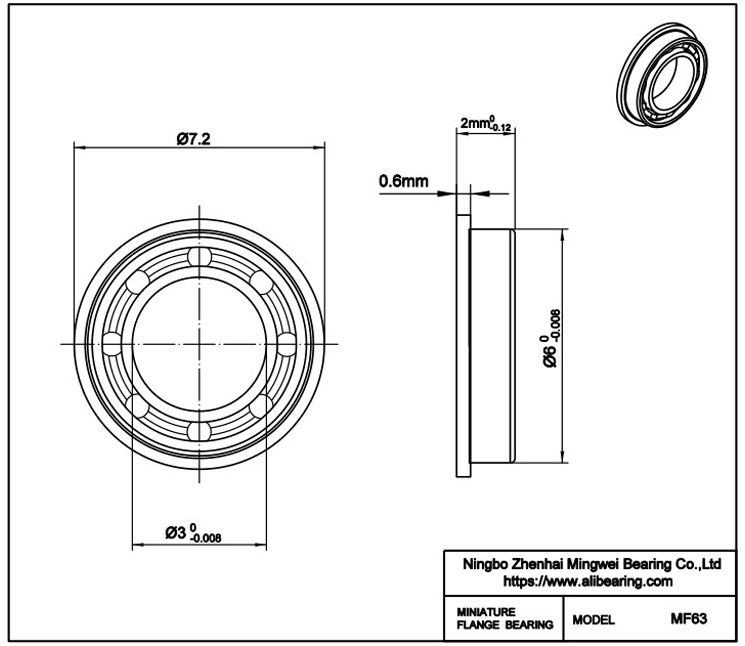

Bore Dia. (d) |
3mm |
Bore Dia. Tolerance |
-0.008mm to 0 |
Outer Dia. (D) |
6mm |
Outer Dia. Tolerance |
-0.008mm to 0 |
Width (B) |
2mm |
Width Tolerance | -0.12mm to 0 |
Flange OD | 7.2mm |
Flange Width | 0.6mm |
Ring Material |
Gcr15 | 52100 Chrome steel |
Ball Material | Gcr15 | 52100 Chrome steel |
Cage Material | Gcr15 | 52100 Chrome steel |
Shield Material | Gcr15 | 52100 Chrome steel |
Dynamic Load Rating (Cr) (N) |
208 |
Static Load Rating (Cor) (N) | 74 |
Max Speed (Grease) (X1000 RPM) |
71 |
Max Speed (Oil) (X1000 RPM) | 80 |
Temperature Range |
-30℃ to 110 ℃ |
Precision Grade | P0 | ABEC-1 |
Radial Clearance Grade | C0 |
Radial Clearance |
0.002mm to 0.013mm |
Weight |
0.26g |
|
