| Bearing Type | Polyurethane Bearing |
| Load Direction | Radial |
| Application | Conveyor Belt |
| Bore Dia. Range | 5,6,8,10mm |
| Outer Dia. Range | 30~40mm |
|
Width Range |
20mm~30mm |

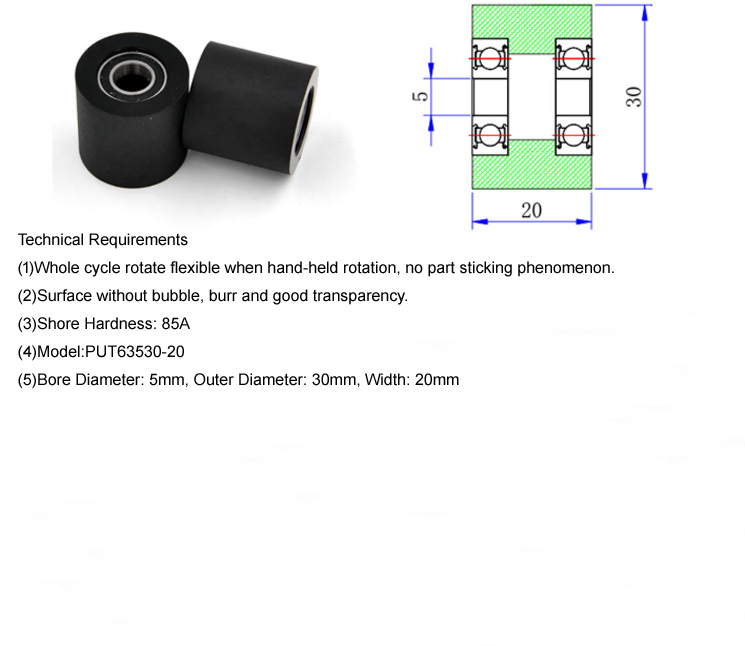

| Model | PUT63530-20 |
| Inside Bearing | 635 2RS(5x19x6) |
|
Bore Dia. |
5mm |
|
Outer Dia. |
30mm |
| Width | 20mm |
| Max.Load | 20kg |
| Weight | 29.8g |
|
|
