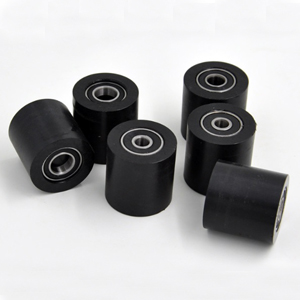

| Bearing Type | Polyurethane Bearing |
| Load Direction | Radial |
| Application | Conveyor Belt |
| Bore Dia. Range | 5,6,8,10mm |
| Outer Dia. Range | 30~40mm |
|
Width Range |
20mm~30mm |

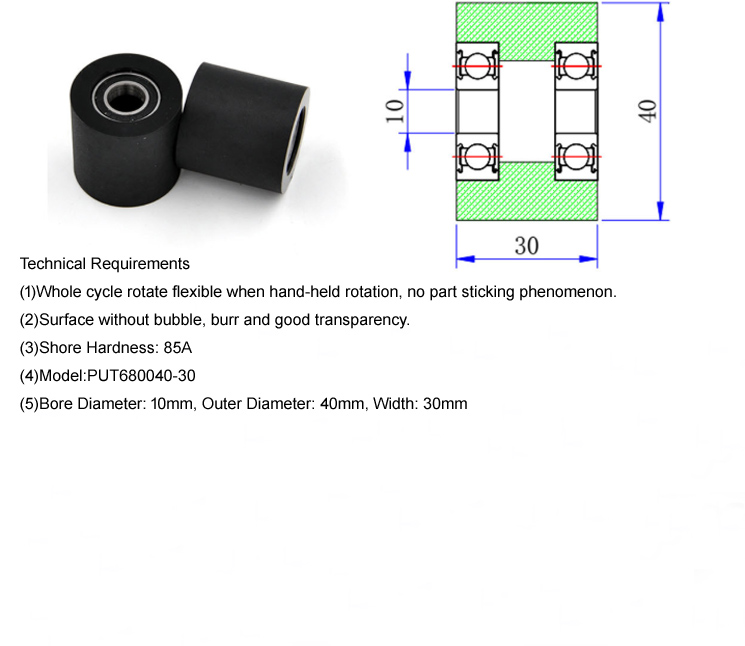

| Model | PUT680040-30 |
| Inside Bearing | 6800 2RS(10x19x5) |
|
Bore Dia. |
10mm |
|
Outer Dia. |
40mm |
| Width | 30mm |
| Max.Load | 20kg |
| Weight | 49.3g |
|
|
