Bearing Type
|
Thin Section Ball Bearing
|
|
Load Direction
|
Radial
|
|
Construction
|
Single Row
|
|
Seal Type
|
Sealed
|
|

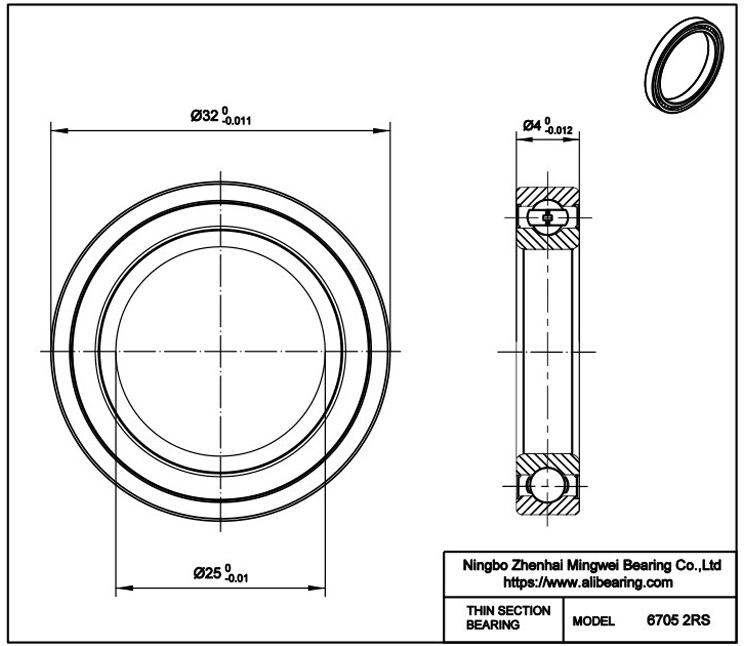

Model
|
6705 2rs
|
Bore Dia (d)
|
25mm
|
|
Bore Dia Tolerance
|
-0.01mm to 0
|
Outer Dia (D)
|
32mm
|
|
Outer Dia Tolerance
|
-0.011mm to 0
|
|
Width (B)
|
4mm
|
|
Width Tolerance
|
-0.120mm to 0
|
|
Ring Material
|
Gcr15 | 52100 Chrome steel
|
|
Ball Material
|
Gcr15 | 52100 Chrome steel
|
|
Cage Material
|
Gcr15 | 52100 Chrome steel
|
|
Shield Material
|
Gcr15 | 52100 Chrome steel
|
|
Dynamic Load Rating (Cr) (N)
|
19300
|
|
Static Load Rating (Cor) (N)
|
15500
|
|
Max Speed (Grease) (X1000 RPM)
|
19
|
|
Max Speed (Oil) (X1000 RPM)
|
22
|
Temperature Range
|
-30℃ to 110 ℃
|
|
Precision Grade
|
P0 | ABEC-1
|
|
Radial Clearance Grade
|
C0
|
Radial Clearance
|
0.006mm to 0.020mm
|
|
Weight
|
5.9g
|
|
|
