6700zz
  • 6700zz
  • 6700zz
Bearing Type Thin Section Ball Bearing
Load Direction Radial
Construction Single Row
Seal Type Shielded
Model 6700zz

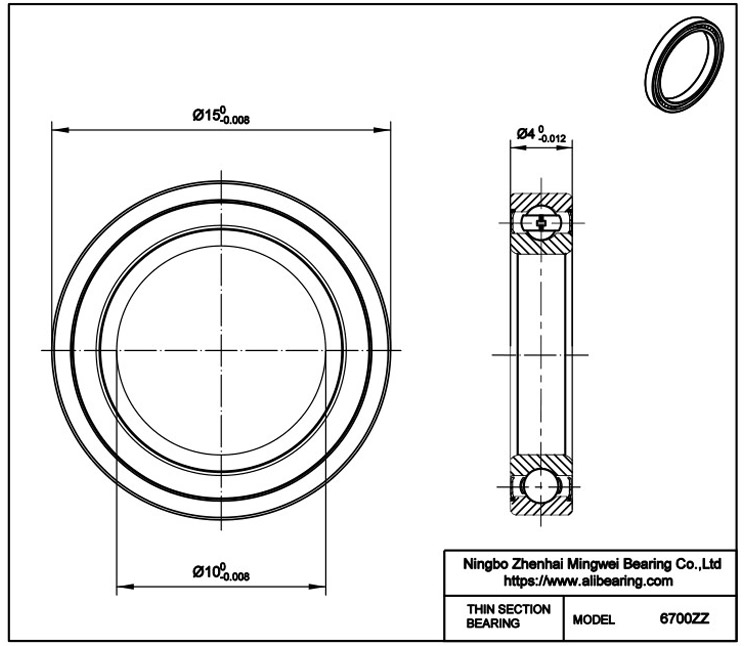

Bore Dia (d)
10mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia (D)
15mm
Outer Dia Tolerance -0.008mm to 0
Width (B) 4mm
Width Tolerance -0.120mm to 0
Ring Material Gcr15 | 52100 Chrome steel
Ball Material Gcr15 | 52100 Chrome steel
Cage Material Gcr15 | 52100 Chrome steel
Shield Material Gcr15 | 52100 Chrome steel
Dynamic Load Rating (Cr) (N) 855
Static Load Rating (Cor) (N) 435
Max Speed (Grease) (X1000 RPM) 42
Max Speed (Oil) (X1000 RPM)  51
Temperature Range
-30℃ to 110 ℃
Precision Grade P0 | ABEC-1
Radial Clearance Grade C0
Radial Clearance
0.003mm to 0.018mm
Weight 1.9g
